DC24V repaly output weight sensor load cell display indicator for load cell

FOB Reference Price:Get Latest Price
  • 1 - 9 Pieces
    $78.00
  • 10 - 99 Pieces
    $69.00
  • >=100 Pieces
    $59.00
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 2 Negotiable
Customization:
Graphic customization (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 30 Pieces)

More

Customized logo (Min. Order: 20 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
CALT
Model Number:
V4896-24
Power Supply:
DC24V
Display Type:
LED
Temperature:
0-50℃
Humidity:
20-90%RH
Measurement accuracy:
±0.2%F.S±1 word
Message transaction cycle time:
0.2 seconds
Display:
Double 5digit bright red LED
Output excitation voltage:
5V±5%
Supply voltage:
DC24V
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Standard strong export carton box
Port
Shanghai, China
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 2 To be negotiated
Product Description



DC24V  repaly output weight sensor load cell display indicator for load cell





Specifications:

The instrument adopts 24-bit A/D converter, which cooperates with various sensors and transmitters to realize measurement, display, alarm monitoring and data acquisition and records of physical parameters such as pressure, flow, level, composition analysis and force and mechanical quantity.



Work environment



Temperature:0-50

Display

Double 5digit bright red LED

Humidity:20-90%RH

Output excitation voltage

5V±5%(power the sensor),

current <50MA

Measurement accuracy

±0.2%F.S±1 word

Supply voltage

AC195~242V,power consumption

<5w/ 24V

Message transaction cycle time



0.2 seconds: can be increased to 0.05seconds













The key introduction

key “SET”:set up key         key ”>” :Shift key or tare (peak meter)

key:rise key               key “CLR” :peak reset key or tare(upper and lower bound meter)





Dimension

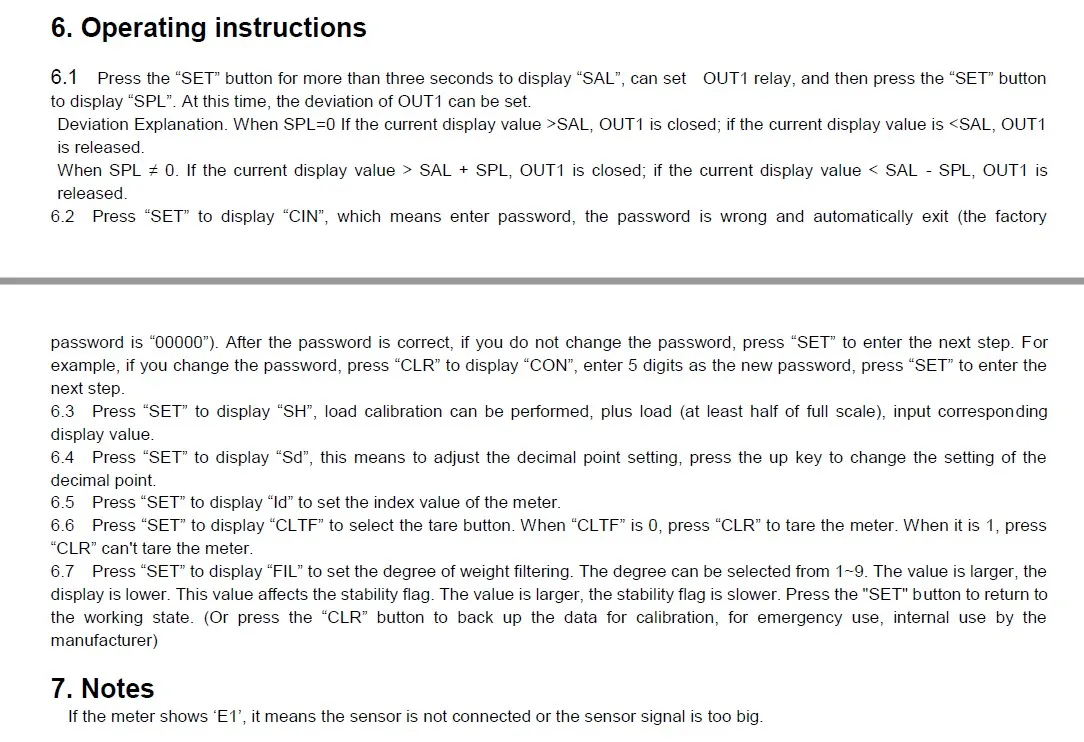

Contexthelp

Symbol

Name

Range

SAL

OUT1 relay

00000~ full range

SPL

OUT1 deviation

0<SPL<SAL

SAH

OUT2 relay

00000~ full range

SPH

OUT2 deviation

0<SPH<SAH

SL

Zero calibration value

00000

SH

Load calibration value

More than half of full range

Sd

Scaling position

0~3

Id

Division value

1.2.5.10.20

CLTF

Tare key selection

0.1

FIL

Weight filtering degree

1to 9
