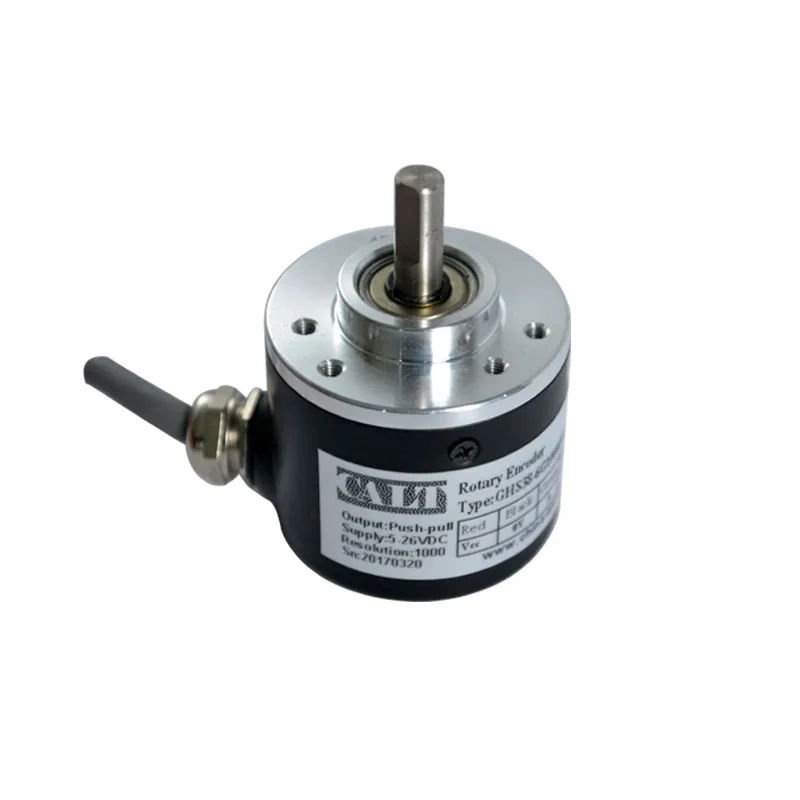

CALT push pull wheel length measuring rotary encoder sensor

FOB Reference Price:Get Latest Price
$40.00 - $60.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT
Model Number:
GHW52
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
Digital Sensor
Supply voltage:
DC 5V/5-26V
Outer diameter:
52mm
Shaft:
5/68mm
Output form:
NPN, Voltage, Push-pull, Line driver
Output signal:
A, B, Z, A-, B-, Z-
Start torque:
<0.05Nm
Max. speed:
6000rpm
Protaction grade:
IP54
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Strong Export Carton Box
Port
Shangahi, China
Lead Time :
About 2-3 days after confirming the payment
Product Description



CALT push pull wheel length measuring rotary encoder sensor



Application & Features:

Used in automatic control, measurement, robotX-Y working platform, printing and packaging. Internal ASIC devices, high reliability, long life, strong anti-interference. Stability and protection ofthe stainless steel shaft has a higher capacity, more solid metal housing could anti-shock. Outlet end metal interfacesets of waterproof protection



Model:





Electrical specification:





Output circuit

Open-collector output

Voltage output

Push-pull complementary outputs

 driver

Supply voltage

5~26V

5~26V

5±0.25  5~26V

5±0.25  5~26V

Current consumption

≤80mA

≤80mA

≤80mA

≤150mA

Load current

40mA

40mA

40mA

60mA

Output high

Min Vcc*70%

Min Vcc-2.5V

Min Vcc-1.5V

Min 3.4V

Output low

MAX 0.4V

MAX 0.4V

MAX 0.8V

MAX 0.4V

Rise time Tr

MAX 1us

MAX 1us

MAX 1us

MAX 200ns

Fall time Tf

MAX 1us

MAX 1us

MAX 1us

MAX 200ns

Highest frequency response

300kHz

300kHz

300kHz

300kHz





Mechanical specification:



Max speed r/min

Starting torque

Axis maximum load

Impact

Anti-vibration

3000

<0.05Nm

Radial 25 N Axial 15N

50G/11ms

10G  10-2000Hz

Moment inertia

Work Temperature

Storage Temperature

Protection Degree

Weight

4 x 10.-5kgm²

-30~85ºC

-35~85ºC

IP54/IP65

250g





Dimensions (Unit: mm)








Connections:

Signal

A

B

Z

A-

B-

Z-

Vcc

GND

Color

Green

White

Yellow

Brown

Grey

Orange

Red

Black

Without inverted signal

Green

White

Yellow

-

-

-

Red

Black



Related flexible coupling:



Detailed Images



Company Information



     Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. has specialized in encoder, sensor, motor and related products for many years, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.
