CALT 4-20mA cable extension transducer draw wire position sensor

FOB Reference Price:Get Latest Price
$100.00 - $200.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT
Model Number:
CESI--S300-RSA
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
Analog Sensor
Sensing method:
Absolute encoder
Output signal:
4-20mA
Protection Class:
IP54
Cable diameter:
0.6mm
Range:
0-300mm
Resolution:
≤0.1mm/P
Force of Retractile Spring:
About 5N
Operating Temp.:
-40℃~85℃
Weight:
500g
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard strong export carton box
Port
Shanghai, China
Product Description

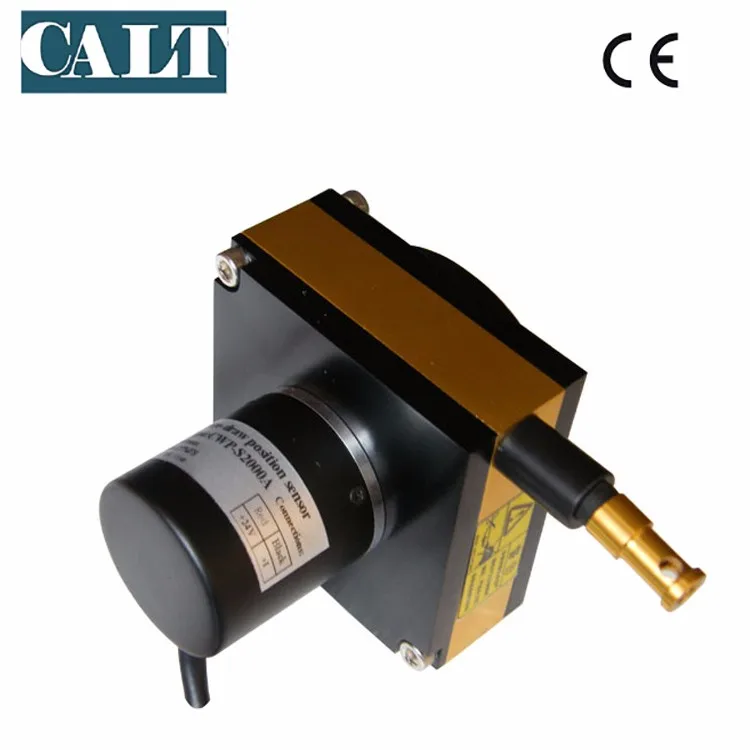

CALT 4-20mA cable extension transducer draw wire position sensor


 Draw-wire Position Sensor is a highly efficient linear displacement measuring device, with ingenious design principle, through scientific combination of the special steel cable and angle measurement components (potentiometer or encoder), it make linear displacement motion of an object convert into electric signal that measurable and linearly proportional, thereby achieve accurate displacement measurement data output.

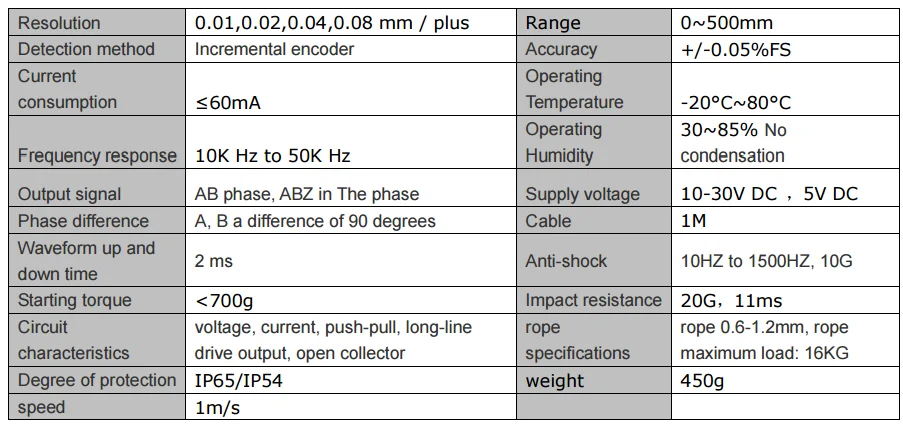

Model :

Dimensions:


Products Show
Related Products

Solid shaft type GHS38 Series.

Widely used in automatic control, automatic measurement, as the angle and speed sensors.


ASIC devices internal, good reliability, long life, anti-jamming performance. Stainless steel shaft has a higher stability and protection.Metal shell is more solid and anti-impact. Bearing load heavy, anti-oil and water

Servo-motor Encoder GSM48 Series.

Widely used in the field of automatic control AC servo unit, particularly suitable for use in servo motor supporting.


Internal ASIC devices, high reliability, long life, strong anti-interference. Wide range of resolutions, and does not require signal conditioning.  With A, B, Z and U, V, W six-channel signal output can be connected with standard line driver (26LS31) RS422, can provide 12 output signal, and is compatible with TTL

Hollow Shaft Type GHH38 Series.

Used in automatic control, measurement, robot X-Y working platform, printing and packaging.

Internal ASIC devices, high reliability, long life, strong anti-interference. more solid metal housing could anti-shock. Outlet end metal interface sets of waterproof protection.

Hollow Shaft Type GHH100 series.

Used in automatic control, measurement, robot X-Y working platform, printing and packaging.

Internal ASIC devices, high reliability, long life, strong anti-interference. more solid metal housing could anti-shock. Outlet end metal interface sets of waterproof protection.

Manual Pulse Generator TM1469 series.

For CNC machine origin correction and signal split.


 Full plastic housing, high dielectric strength, the axis transfer switch and Oil Pollution Prevention seal design.

Draw-wire Position Sensor CESI series.

compact size, rugged construction, easy to install

economic cost, and cost savings for customers
Various signals output optional: push-pull, TTL, open collector and so on


The cylinders, testing machines and other industry has achieved large-scale applications, reliability

Our Company

 Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. has specialized in encoder, sensor, motor and related products for many years, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.
