360 degree 4- 20mA digital potentiometer hall angle position sensor

FOB Reference Price:Get Latest Price
$77.00 - $93.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT
Model Number:
P3015-V1-CW360
Usage:
Position Sensor
Theory:
Hall Sensor
Output:
Digital Sensor
Output signal:
4- 20mA
Effective electrical angle:
360°
Resolution:
4096bits(12bits)
Bearing:
2 precision ball bearings
Protection class:
IP65
Shaft:
Stainless steel
Life Expectancy:
Infinity(in theory)
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Standard strong export carton box
Port
Shanghai, China
Lead Time :
Within 7 days after payment
Product Description



 360 degree 4- 20mA digital potentiometer hall angle position sensor

  P3036 series of miniature non-contact angle sensor works through the principle of electromagnetic induction, the angle is converted to an electrical signal. When the rotation angle of the object passed to the axis of rotation sensors, P3015 angle sensor outputs an electrical signal that is proportional to the rotational angle.





   This series of products using hard aluminum alloy material shell; Hall-type non-contact technology, P3036 series angle sensor has the advantages of non-contact angle sensor, and the use of high-quality imported high quality stainless steel high speed bearing member, so that it reduced frictional resistance when measuring the minimum, not because of the wear surface measurement component caused decrease measurement accuracy, long service life theoretically unlimited; the product compact structure, small size, optional strong, high resolution, smooth rotation dynamic noise in addition to the excellent performance suitable for electromagnetic interference outside the water, oil, vibration, shock and other harsh industrial environment, is a cost-effective non-contact angle sensor.





Feature:


Maximum outer diameter 36.5mm

The whole point of 360 ° no dead Measurement

Linearity is 0.3% F.S.

Output signal 4-20mA, 0-5V DC or 0-10V DC

Supply voltage 24V DC

Mechanical theory of infinite life

Small rotary damper

Easy to install









Application:



              Manipulators

           Textile Machinery

           Construction machinery

           Hydraulic cylinders Systems

           Testing Machine

            Automotive Test

            Medical instruments



Model:

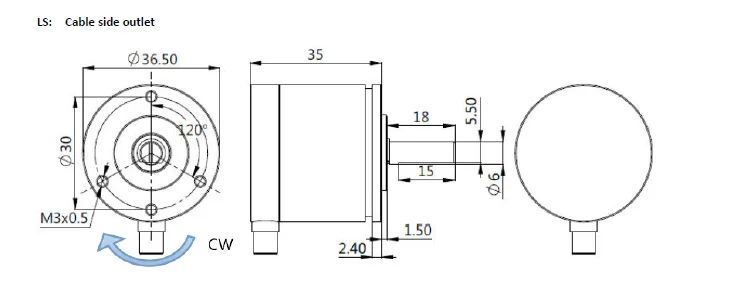

Dimensions (Unit: mm)



 General Specifications

Mechanical Travel

360°(Endless)

Life Expectancy

Infinity(in theory)

Operating Temperature Range

-30℃~+80℃

Mass

About 100g

Deposited Temperature Range

-30℃~+80℃

Housing

Aluminium, anodization in surface

Protection Degree

IP65

Shaft

Stainless Steel

Starting Torque

<1mN·m

Bearing

2 precision ball bearings



Electrical Specifications



Effective Electrical Angle

360°

Independent Linearity Tolerance

0.3%

Resolution Ratio

4096bits(12bits)

Update Rate

0.6ms/0.2ms(high speed)

Supply Voltage

5V±10%

15~30V

12~24V

15~30V

Signal Output

0~5V(ratio)

0~10V

0~5V

4~20mA

Supply Current(MAX)

<16mA

<25mA

<25mA

<35mA

End Voltage

<1%·VCC

<50mV

<50mV

<0.05mA

Output Load Resistance

>10KΩ

>10KΩ

>10KΩ

<600Ω



wire connections



Terminal or wires name

VCC/Brown cable

OUT/Black cable

GND/Blue

0-5V or 0-10V output

VCC

VOLT out

GND

4-20mA output

VCC

4-20mA out

GND







Company Information

     Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. has specialized in encoder, sensor, motor and related products for many years, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.
