24m 12m 30m range string pot sensor draw wire displacement sensor

FOB Reference Price:Get Latest Price
$70.00 - $600.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
CALT
Model Number:
HP-SL
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
Digital Sensor
measuring distance:
0~30m
pull speed:
4m/s
operating temperature:
-40~85celsius
storage temperature:
-20~80 celsius
rope:
wire rope 0.6~1.2mm wire maximum load 16KG
voltage supply:
12~24Vdc
protection degree:
IP65/IP54
resolution:
theory of infinite
Supply Ability
Supply Ability:
10000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
poly bag and carton box
Port
shanghai
Lead Time :
Shipped in 3 days after payment
Product Description

draw wire position sensor distance measuring device

Description
Draw-wire Position Sensor is a highly efficient linear displacement measuring device, with ingenious design principle, through scientific combination of the special steel cable and angle measurement components (potentiometer or encoder), it make linear displacement motion of an object convert into electric signal that measurable and linearly proportional, thereby achieve accurate displacement measurement data output.

Application areas
Linear guide system, the direct determination of the guide element, such as: the length limit, gantry cranes, level measurement
Hydraulic system, with the piston-oriented systems or hydraulic cylinder, the displacement sensor deflection of these devices to collect data
Scalable systems, such as presses, lifts, bending machine, bending machine
Chains, cranes and cable winch to adjust, such as forklifts, stage equipment, lifts and cranes device.


Model :

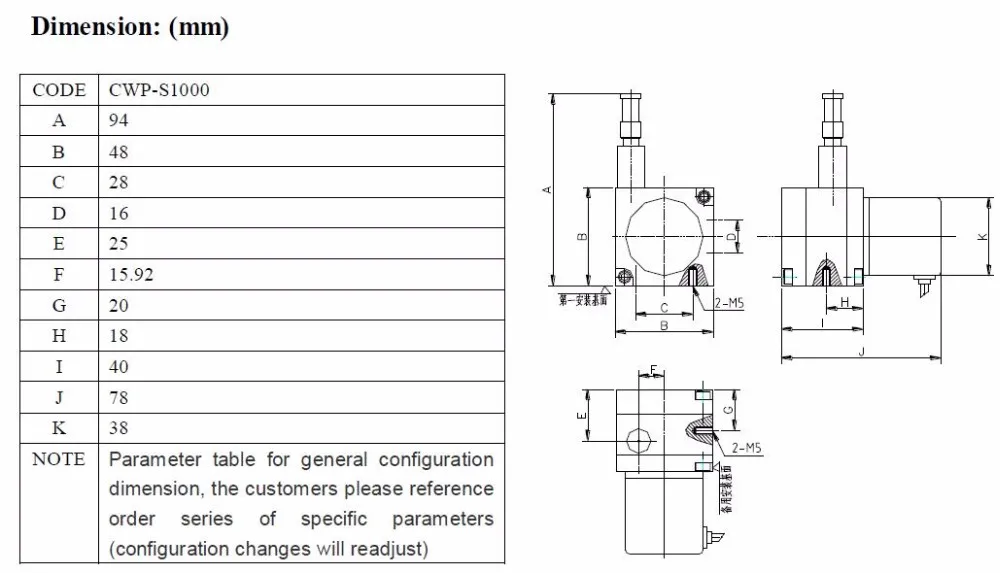

Dimensions:


Specifications:


Product Items
CWP-S400
CWP-S800
CWP-S1000
CWP-S1500
CWP-S3000
Sensing method
Potentiometer
Potentiometer
Potentiometer
Potentiometer
Potentiometer
Stoke Range
400mm
800mm
1000mm
1500mm
3000mm
Voltage Supply
12DC、24DC
12DC、24DC
12DC、24DC
12DC、24DC
12DC、24DC
Output Signal
0-5V, 0-10V, 4-20mA, 0-5 kΩ, 0-10 kΩ
0-5V, 0-10V, 4-20mA, 0-5 kΩ, 0-10 kΩ
0-5V, 0-10V, 4-20mA, 0-5 kΩ, 0-10 kΩ
0-5V, 0-10V, 4-20mA, 0-5 kΩ, 0-10 kΩ
0-5V, 0-10V, 4-20mA, 0-5 kΩ, 0-10 kΩ
Speed Max.
1000mm/S
1000mm/S
1000mm/S
1000mm/S
1000mm/S
Cable Diameter
Φ0.6mm
Φ0.8mm
Φ0.8mm
Φ0.8mm
Φ0.8mm
Linearity
0.1%
0.1%
0.1%
0.1%
0.1%
Force of Retractile Spring
About 5N
About 5N
About 5N
About 5N
About 5N
Operating Temp.
-40°C~85°C
-40°C~85°C
-40°C~85°C
-40°C~85°C
-40°C~85°C
Weight
500G
500G
500G
600G
600G
Lifetime
1×105 strokes
1×105 strokes
1×105 strokes
1×105 strokes
1×105 strokes
Protection Class
IP54
IP54
IP54
IP54
IP54
Products Show
Packing & Delivery

Selling Units: Single item
Single package size: 18X15X12 cm
Single gross weight: 0.6 KG
Package Type: carton

Certifications
Our Company


Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.

Factory Building

9# 302, No. 4361 Hutai Road, Baoshan District, Shanghai

Testing Machine

Oscilloscope

Testing Machine

Industrial microscope

Testing Machine

Plug and dial

warehouse: common type rotary encoders are all in stock can send our in 2-3 days.

warehouse

warehouse

Workshop1


Workshop2


Semifinished product

*Please contact with us if you need other stroke range or output
