High Torque AC Gear Motor

  • 1 - 19 Pieces
    $60.00
  • 20 - 99 Pieces
    $55.00
  • >=100 Pieces
    $45.00
Output Power:
20W
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 15 Negotiable
Customization:
Graphic customization (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 30 Pieces)

More

Customized logo (Min. Order: 20 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT
Model Number:
YN70-20
Type:
Induction Motor
Frequency:
50HZ
Phase:
Single-phase
Certification:
CCC, CE, UL
Protect Feature:
Drip-proof
AC Voltage:
220V
Efficiency:
IE 1
output axle diameter:
10mm
current:
0.25
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard strong export carton box
Port
Shanghai, China
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 15 To be negotiated
Product Description

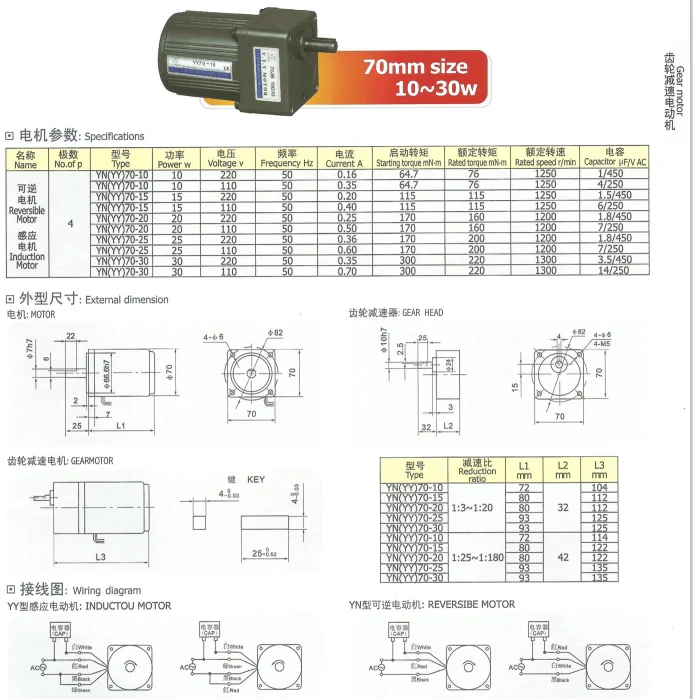

High Torque AC Gear Motor

YN70-20 AC gear motor 220V Safe Packing Way
Reducer gear is integrate gear box and motor. This integrated body would normally be called a gear motor or gear motor.
1, gear motor with international technical requirements for manufacturing, high technology content.
2, space-saving, reliable and durable, withstand high overload capacity, power up to 95KW or more.
3, low energy consumption, superior performance, speed reducer efficiency up to 95%.
4, small vibration, low noise, energy, high-quality forged steel, steel cast iron box, gear surface after HF treatment.
5, precision machining, to ensure parallel shaft and positioning accuracy, all this constitutes a gear drive gear motor assembly configured various types of motor, forming a mechanical and electrical integration, fully guaranteed product quality characteristics.
6, the product uses a series, modular design, a wide range of adaptability, this series has an extremely multi-motor combination, mounting position and structure of the program, according to the actual need to select any speed and a variety of structural forms.

Model :

Products Show
Certifications
Related Products

                     AC gear motor

                   DC gear motor

                servo motor

Our Company

   Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. has specialized in parking heater and related products for many years, located in Chinese business and port center, Shanghai. CALT brand product ranges:  2kw 3kw 4kw 5kw air heater, 5kw, 8-12kw water heater, knob switch heater, remote heater and GSM heater.

 Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Australia, Europe, America and Russia and other countries and regions in the world.

Welcome to our factory

Packing & Delivery

Packing Details  : carton packed for each encoder or items, and then pack with thick carton for shipping.

Delivery Details : 3-4 days after full payment in regular product, and 7-10days for customized type. and according to quantities.

1. Ziplock packed
2. Box Packing
3. Packed with good conditions with shipping mark.
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 2-4 days after full payment if the goods are in stock. or it is 7-12 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Generally it is 2-4 days after full payment if the goods are in stock. or it is 7-12 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: We accept T/T, Paypal, Western union or money gramm.

Q: What's your warranty ?

A: 12 months. If the items you purchased from  our company are not with perfect quality or can't work normally, you can ship back for replacement or refund.

Q: What's your shipment method?

A: We ship by Express FEDEX, UPS, DHL, EMS, ARAMEX. All express freight is charged in your end.
