12Bit Multi-Turn RS485 Signal Absolute Encoder

FOB Reference Price:Get Latest Price
  • 1 - 9 Pieces
    $298.00
  • 10 - 99 Pieces
    $290.00
  • >=100 Pieces
    $260.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT
Model Number:
CAX60-RS485
Theory:
Optical Sensor
Output:
Digital Sensor
shaft dia:
6 mm
Resolution:
12 bits /4026
Grade of protection:
IP65
Supply Voltage:
DC10-30v
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard strong export carton box
Port
Shanghai, China
Lead Time :
About 2-3 days after confirming the payment
Product Description


12Bit Multi-Turn RS485 Signal Absolute Encoder


*Using "magnetic detection method", with excellent shock and vibration characteristics.
*The single turn resolution can reach up to 4096 (12 bits) and up to 4096 laps (12 bits).
*CANopen output, convenient to connect various PLC and PC equipment.
*Multi-purpose and multi-function, directly corresponding to single-turn, multi-turn Angle, multi-turn length measurement.
*Wide working voltage, extremely low power consumption.
*Clamp synchronous flange, blind shaft sleeve flange, international standard outline structure.
* External resetting line to set the default location, easy installation, no need to find ZERO.

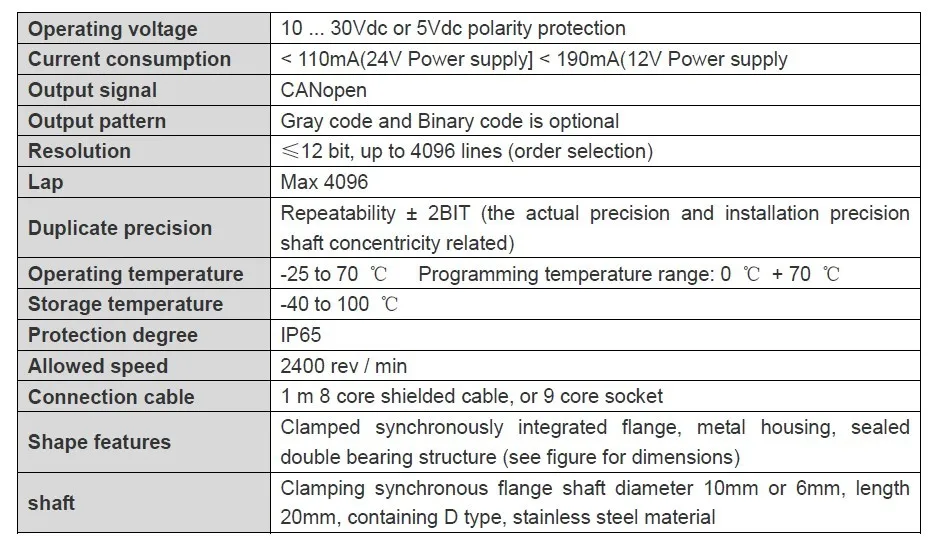

Characteristic parameters:

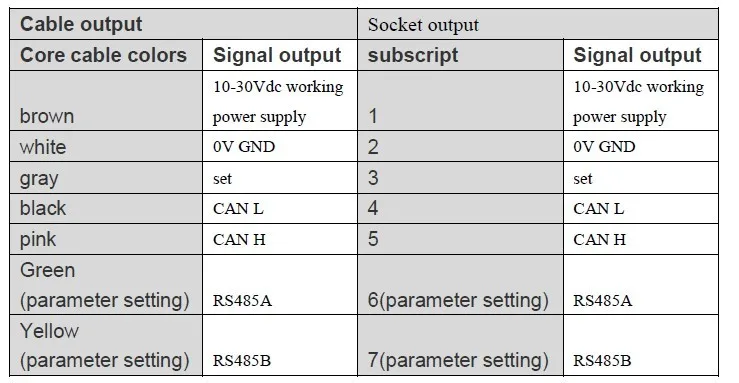

Connection

Dimensions:


Parameters:

The encoder can set the communication frequency and address, direction and resolution of CANopen via RS485 communication interface.

The communication baud rate of RS485 is 115200.

Frame format: 8-bit data , stop bit 1, no check, no control flow.

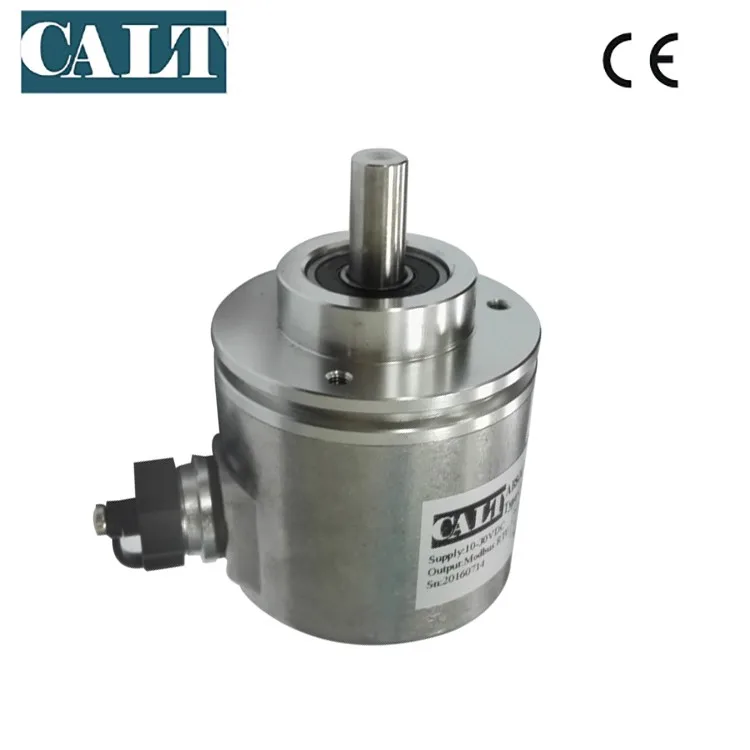

Products Show
Our Company

Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.

Factory Building

9# 302, No. 4361 Hutai Road, Baoshan District, Shanghai

Testing Machine

Oscilloscope

Testing Machine

Industrial microscope

Testing Machine

Plug and dial

warehouse: common type rotary encoders are all in stock can send our in 2-3 days.

warehouse

warehouse

Workshop1


Workshop2


Semifinished product

Certifications
Packing & Delivery

Packing Details  : carton packed for each encoder or items, and then pack with thick carton for shipping.

Delivery Details : 3-4 days after full payment in regular product, and 7-10days for customized type. and according to quantities.

1. Rotary encoder pack box 2 layers.
2. All packed good
3. Encoder module disc in plastic box
4. Ziplock packed for flexible coupling
5. Rotary encoder packed well
6. Packed with good conditions with shipping mark.
