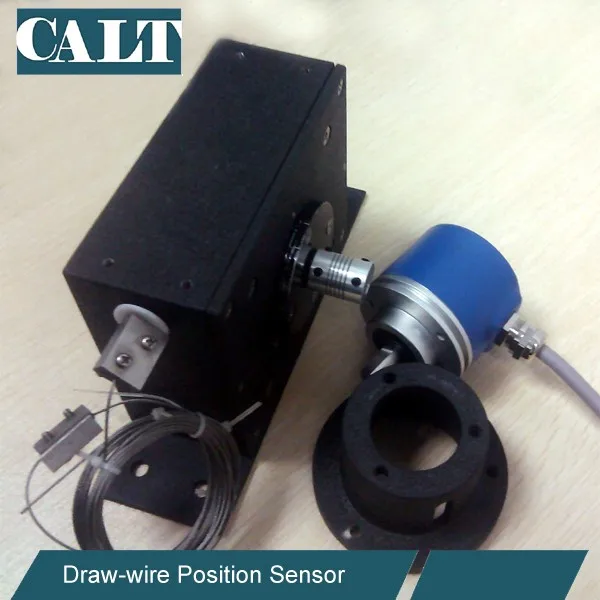

Draw-wire linear position sensor. Draw-wire Position Sensor is a highly efficient linear displacement measuring device, with ingenious design principle, through scientific combination of the special steel cable and angle measurement components (potentiometer or encoder), it make linear displacement motion of an object convert into electric signal that measurable and linearly proportional, thereby achieve accurate displacement measurement data output.
* Compact size, rugged construction, easy to install
* Economic cost, and cost savings for customers * Vutput supply: 5-14vdc,10-30vdc * The cylinders, testing machines and other industry has achieved large-scale applications, reliability
Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.
