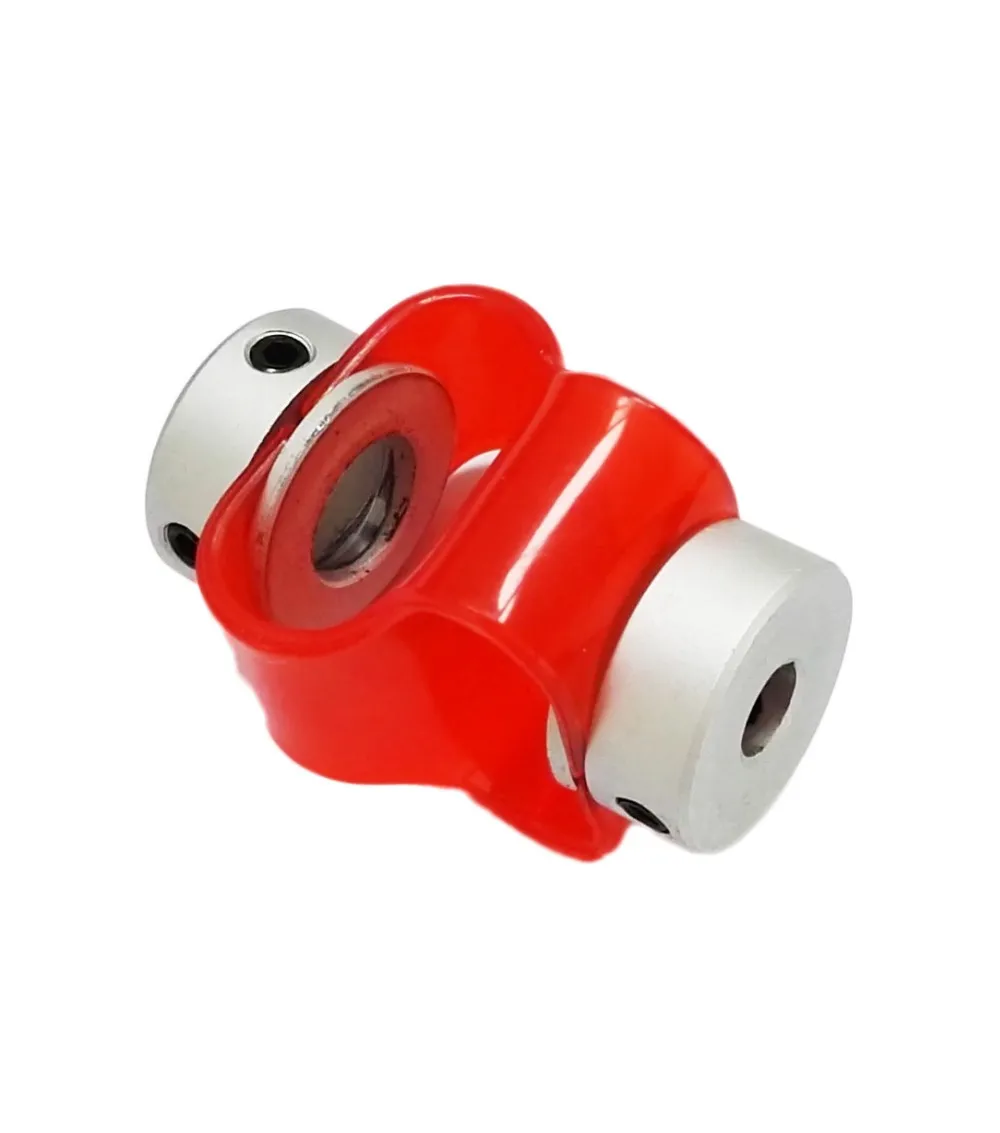

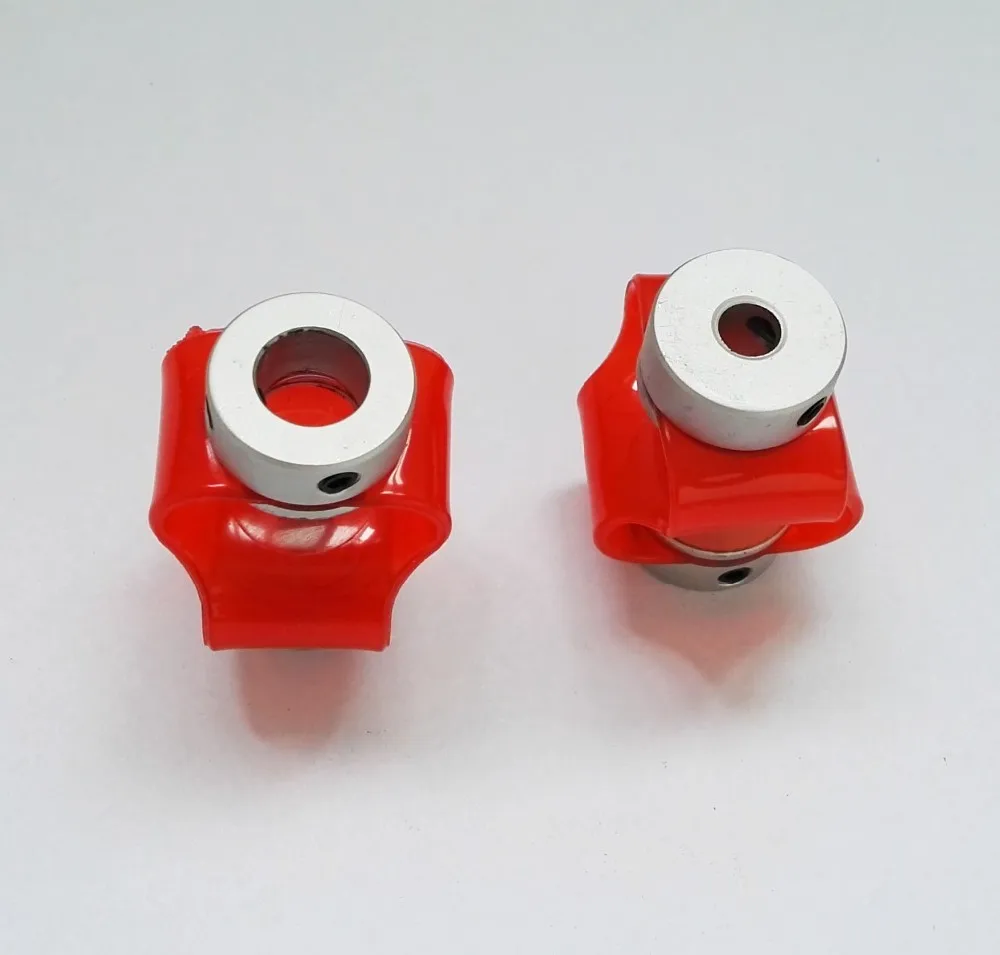

This double loop elastomer coupling has a double loop element made of a thermoplastic polyester elastomer (Hytrel) for strength, flexibility and heat resistance. This flexible element can accommodate angular, radial and axial misalignment to address a variety of misalignment scenarios. The hubs and fasteners are steel alloy for strength and durability.
Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other. Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another. Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.
For we are manufacturer, and we are able to accept your customize. Please check the picture bellowing and email us the model you need, we will send the datasheet to you soon.
Solid shaft type GHS38 Series.
Widely used in automatic control, automatic measurement, as the angle and speed sensors.
ASIC devices internal, good reliability, long life, anti-jamming performance. Stainless steel shaft has a higher stability and protection.Metal shell is more solid and anti-impact. Bearing load heavy, anti-oil and water
Servo-motor Encoder GSM48 Series.
Widely used in the field of automatic control AC servo unit, particularly suitable for use in servo motor supporting.
Internal ASIC devices, high reliability, long life, strong anti-interference. Wide range of resolutions, and does not require signal conditioning. With A, B, Z and U, V, W six-channel signal output can be connected with standard line driver (26LS31) RS422, can provide 12 output signal, and is compatible with TTL
Hollow Shaft Type GHH100 series.
Used in automatic control, measurement, robot X-Y working platform, printing and packaging.
Internal ASIC devices, high reliability, long life, strong anti-interference. more solid metal housing could anti-shock. Outlet end metal interface sets of waterproof protection.
Draw-wire Position Sensor CESI series.
compact size, rugged construction, easy to install
economic cost, and cost savings for customers Various signals output optional: push-pull, TTL, open collector and so on
The cylinders, testing machines and other industry has achieved large-scale applications, reliability
Manual Pulse Generator TM1469 series.
For CNC machine origin correction and signal split.
Full plastic housing, high dielectric strength, the axis transfer switch and Oil Pollution Prevention seal design.
Packing & Delivery
Packing Details : carton packed for each encoder or items, and then pack with thick carton for shipping.
Delivery Details : 3-4 days after full payment in regular product, and 7-10days for customized type. and according to quantities.
1. Rotary encoder pack box 2 layers.
2. All packed good
3. Encoder module disc in plastic box
4. Ziplock packed for flexible coupling
5. Rotary encoder packed well
6. Packed with good conditions with shipping mark.
Welcome To Factory
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-8 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample but do not pay the cost of freight.
Q: What is your terms of payment ?
A: We accept T/T, Paypal, Western union or money gramm.
Q: What's your shipment method?
A: We ship by Express FEDEX, UPS, DHL, EMS, ARAMEX. All express freight is charged in your end.
