Square waveform incremental rotary encoder component module PD22

FOB Reference Price:Get Latest Price
  • >=5 Pieces
    $10.00
Lead Time:
Quantity(Pieces) 1 - 20 >20
Est. Time(days) 4 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
CALT
Model Number:
PD22
Usage:
Speed Sensor
Theory:
Optical sensor
Output:
Digital Sensor
Description:
PD22
Voltage - Supply:
-
Output Type:
-
Current - Supply:
-
Operating Temperature:
-
Mounting Type:
-
Features:
-
Current - Supply (Max):
-
Package / Case:
-
Packaging:
-
Frequency:
-
Output Configuration:
-
Current:
-
Voltage Rating:
--
Operating Force:
-
Oxygen Range:
-
Humidity Range:
-
Size:
-
Size / Dimension:
-
Measuring Range:
-
Resolution:
-, 100/512/1000/1024/2000/5000lines
Sensing Range:
-
Current - Output (Max):
-
Bandwidth:
-
Acceleration Range:
-
Sensitivity (LSB/g):
-
Sensitivity (mV/g):
-
Sensitivity (LSB/(°/s)):
-
Sensitivity (mV/°/s):
-
Sensing Distance:
-
Current - Output:
-
Power - Rated:
-
Voltage - Output Difference (Typ) @ Distance:
-
Voltage - Output (Typ) @ Distance:
-
Voltage - Max:
-
Voltage - DC Reverse (Vr) (Max):
-
Power - Max:
-
Sensing Object:
-
Sensing Light:
-
Resistance:
-
Resistance Tolerance:
-
Sensing Temperature - Local:
-
Sensing Temperature - Remote:
-
Current Rating - AC:
-
Current Rating - DC:
-
Tolerance:
-
Voltage - Rated:
-
Flow Sensor Type:
-
Voltage - Input:
-
Application:
Industrial Automation
thickness:
0.02-1.2mm
Supply voltage:
5v or 7-12V
output waveform:
square
Amplifier Type:
-
Resolution (Bits):
-
Interface:
-
Technology:
-
Function:
-
Applications:
-
Output Function:
-
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton box
Port
shanghai
Lead Time :
Quantity(Pieces) 1 - 20 >20
Est. Time(days) 4 To be negotiated

Square waveform incremental rotary encoder component module PD22

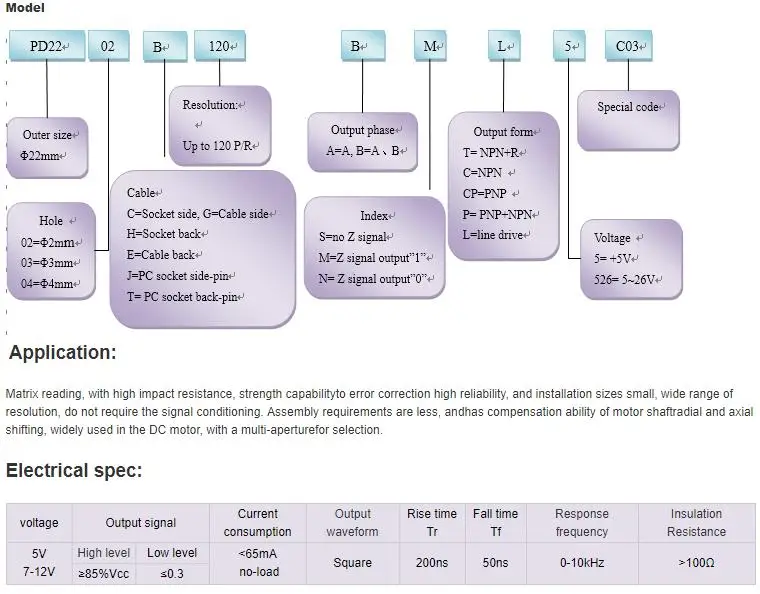

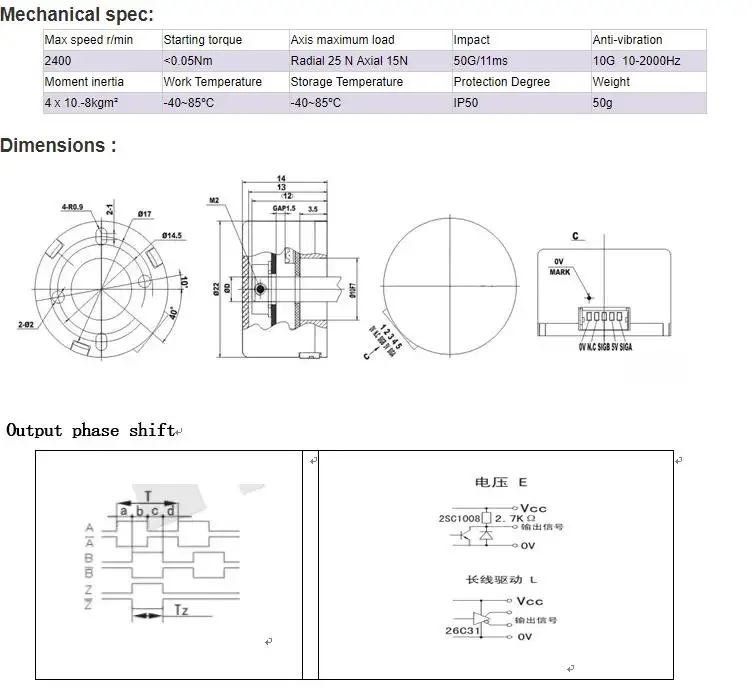

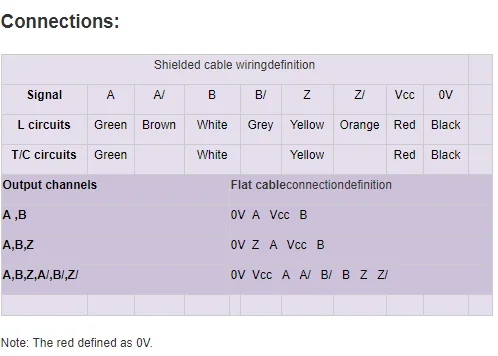

Product Description
